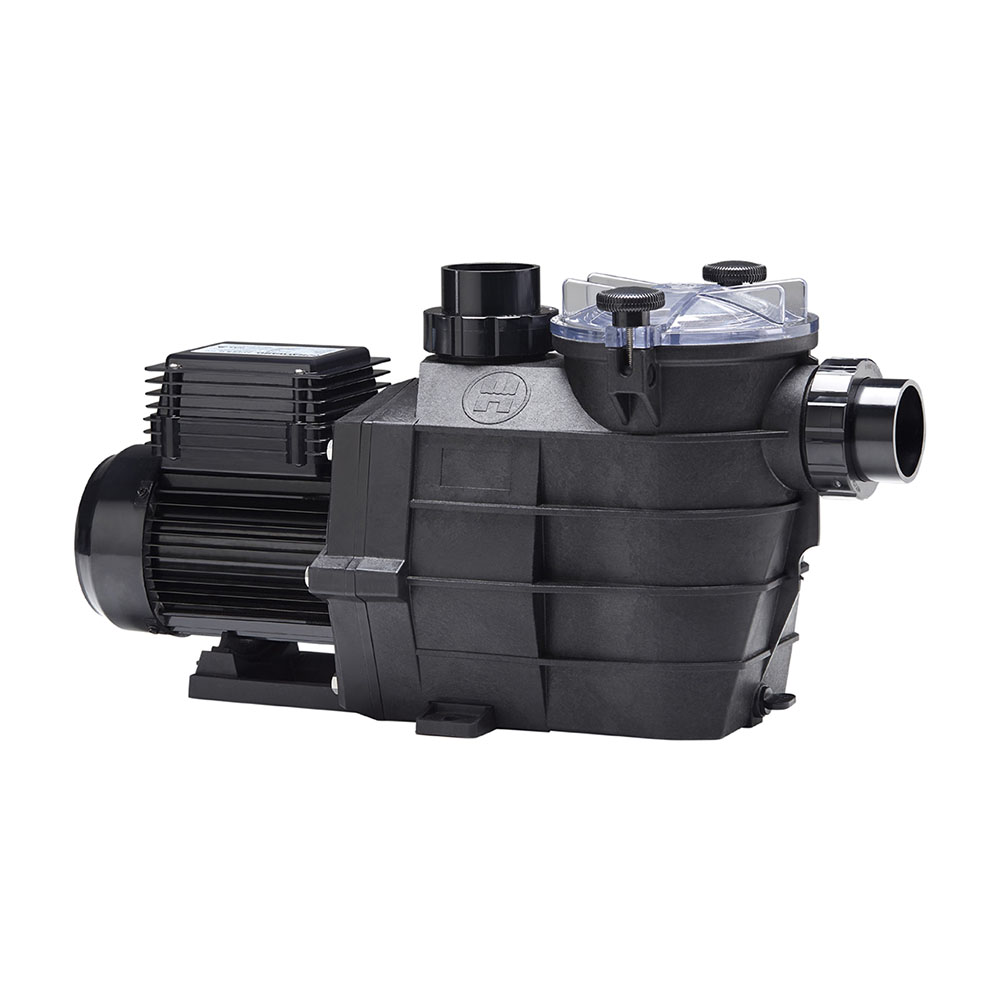

Hayward SUPER II® ECO

Product Manufactured/Assembled in Australia

FEATURES & BENEFITS

1. HEAVY DUTY, HIGH PERFORMANCE MOTOR
With advanced airflow ventilation for quieter, cooler operation.

2. HIGH QUALITY
Industrial-Size Carbon Ceramic Mechanical Seal.

3. FULL FLOW HYDRAULICS
Allows a greater flow at a lower operation cost.

4. SIMPLE ACCESS
Motor and entire drive group assembly can be removed, without
disturbing pipe or mounting connections by disengaging just six bolts.

5. DOUBLE INSULATED WATER CIRCUIT

6. IMPRESSIVE LEAF HOLDING CAPACITY
Rigid construction includes load-extender ribbing for free
flowing operation, even under extra-heavy debris loads.

7. SELF-PRIMING
Suction lift up to 1.8m above water level without a check
value.

8. SEE THROUGH STRAINER COVER
Lexan cover lets you see when basket needs cleaning and
eliminates guesswork. This basket has a rigid construction
including load-exterior ribbing for free flowing operation.

9. UNI-BRACKET MOUNTING BASE
Provides stable, stress-free support, plus versatility for
any installation requirement.

• MODEL: SIIE 320
• INGRESS PROTECTION: IPX5
• INPUT POWER (KW): 0.98
• INPUT AMPS: 4.34
• HP: 1
• LXW (MM): 569X 240
• PVC PIPE (MM): 40/50
• NOISE DB(A)@1M: < 70
• WEIGHT (KG): 13.4
